PCB assembly capabilities

A practical capability set for complex electronic builds

From precision surface mount and through-hole assembly to inspection, testing, coating, repair, and box-build support, Core brings the processes together around your production requirements.

Request a Quote View Process

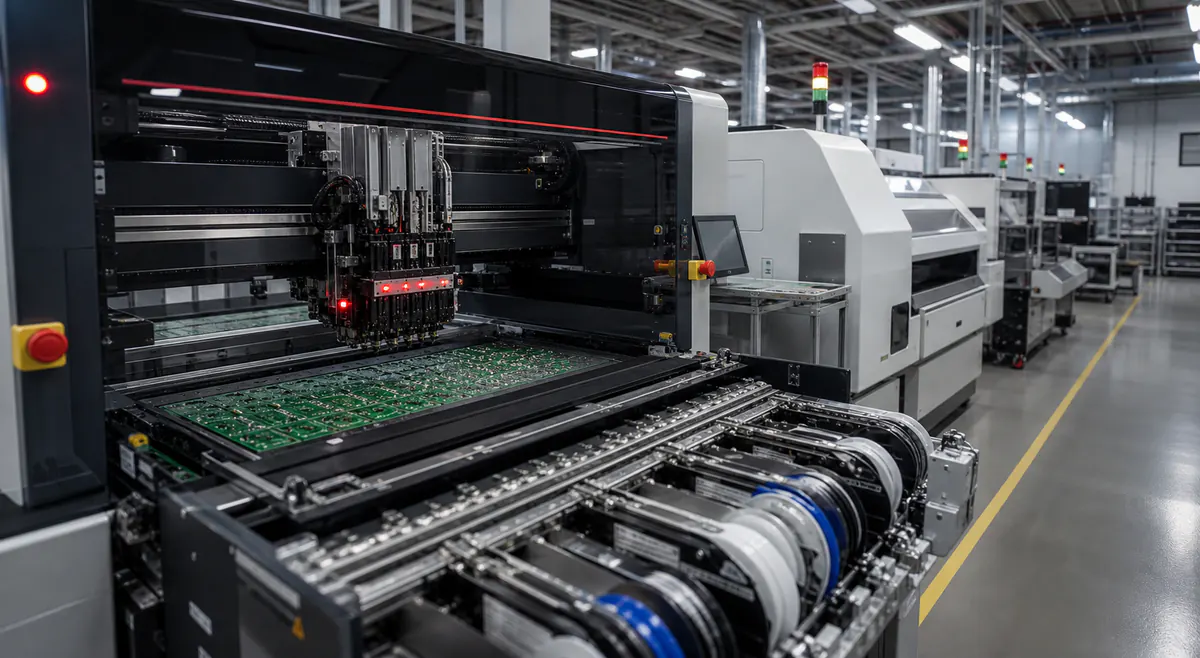

Automated SMT pick-and-place line assembling an array of printed circuit boards
Flexible support from prototype builds through repeat production

Production capabilities

PCB assembly built around real production needs

Core builds from customer-provided bills of materials, drawings, schematics, component specifications, supplied kits, and manufacturing documentation—from prototype assembly through dependable repeat production.

Discuss your build scope
01

Surface Mount Technology

Single and double-sided high-mix PCB assembly, including component placement down to 0201.

02

Through-Hole PCB Assembly

Dependable through-hole assembly supported by wave solder capability and trained technicians.

03

Cable & Harness Assembly

Customer-specific cable and harness builds coordinated with broader electronics production needs.

04

Conformal Coating

Protective coating support for circuit boards used in technical equipment and field applications.

05

Rework, Repair & Modification

Controlled board modifications, troubleshooting, repair, SMT rework, and desoldering services based on customer documentation.

06

Functional Testing

Functional testing performed around documented assembly and performance requirements.

07

AOI Inspection

Automatic optical inspection supports consistent board-level quality and repeatability.

08

Kit Supplied or Turnkey

Assembly of customer-supplied kits or purchasing of customer-specified components against the approved BOM.

09

Integrated Box-Build Services

Production support that extends beyond circuit boards into complete integrated assemblies.

10

Scheduled Production

Blanket orders and scheduled releases support medium-volume and larger repeat production requirements.

Automated SMT pick-and-place line assembling an array of printed circuit boardsCapacity expansion / 2026

Recent investment

Expanded SMT capacity with Essemtec PUMA Ultra

Core Assemblies recently added a new Essemtec PUMA Ultra pick-and-place system to increase SMT capacity, improve flexibility, and support increasingly complex high-mix PCB assembly programs.

Advanced SMT capabilitySupports increasingly complex and miniaturized components with improved speed, accuracy, and efficiency.
High-mix flexibilityBuilt for prototypes, low- and medium-volume work, and larger scheduled orders where requirements can change.
Prototype through full productionSupports customers from prototype development through production builds.
Continued investmentReflects Core’s focus on precision, dependable quality, and long-term customer success.
Send your BOM or assembly notes Read the Essemtec capacity announcement

Production resources

People, process, and equipment working together

Trained technicians and practical production equipment support reliable PCB assembly from prototypes and 25-to-100-board orders through repeat runs of 2,000 units or more.

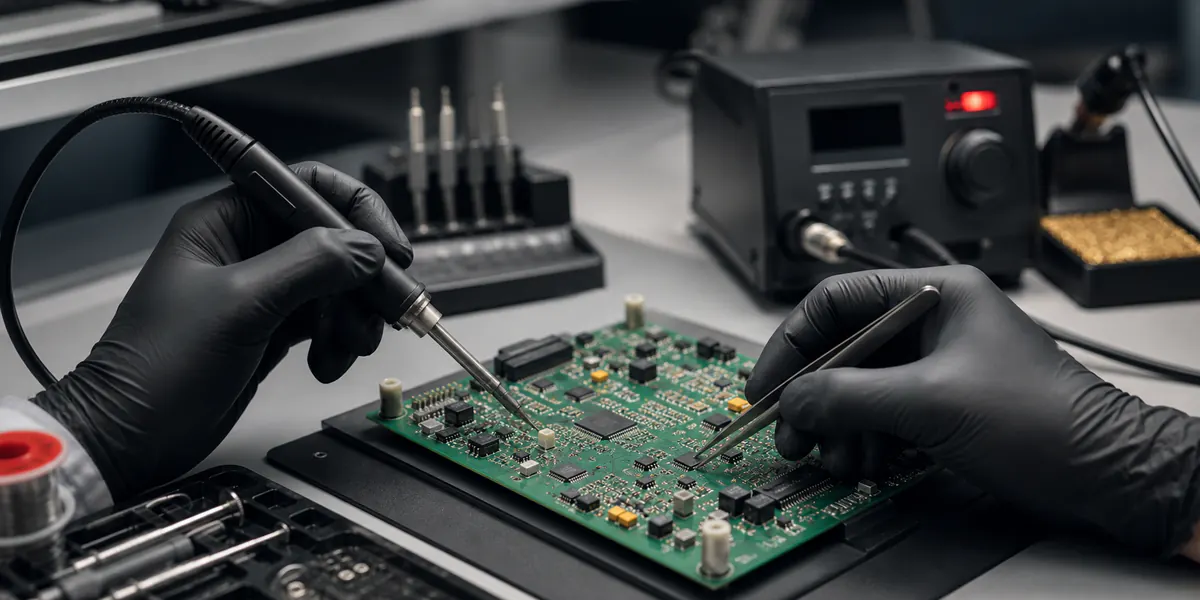

Electronics technician soldering and reworking components on a printed circuit board

SMT Placement

PUMA Ultra and FLX2010 pick-and-place systems support flexible, high-mix PCB assembly.

AOI Inspection

Mirtec automatic optical inspection supports repeatable board-level quality review.

Reflow & Wave Solder

Reflow and wave solder resources support both SMT and through-hole production needs.

Cleaning & Pre-Bake

Aqueous cleaning and pre-bake processes support controlled assembly preparation.

Rework & Desoldering

Dedicated rework and temperature-controlled soldering support modifications and repairs.

Programming & Forming

Programming and lead-forming equipment help complete specialized assembly requirements.

A practical RFQ process

Direct quote support from files through delivery

  1. 01

    Send requirements

    Share your BOM, drawings, schematics, component specifications, supplied-kit details, and assembly notes.

  2. 02

    Review requirements

    Align on quantities, timeline, materials, and quality needs.

  3. 03

    Confirm build scope

    Define materials, SMT, through-hole, testing, coating, blanket-order, or scheduled-release needs.

  4. 04

    Build and inspect

    Move through assembly, inspection, and required testing.

  5. 05

    Deliver

    Complete the run and deliver to the agreed requirements.
